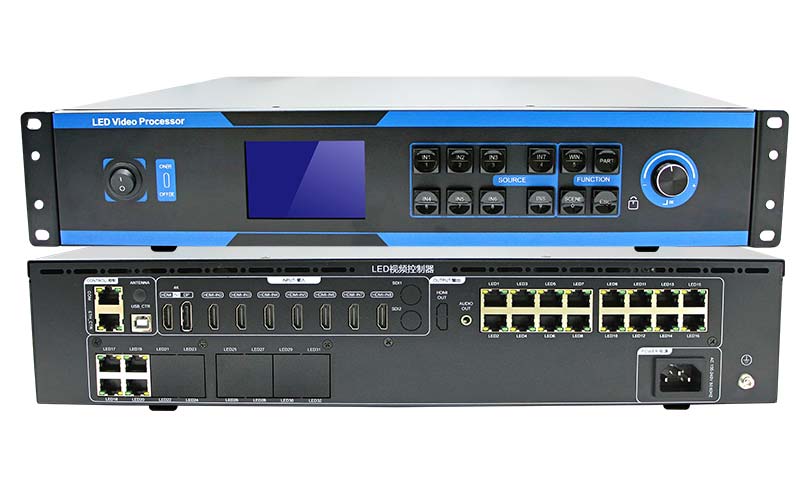

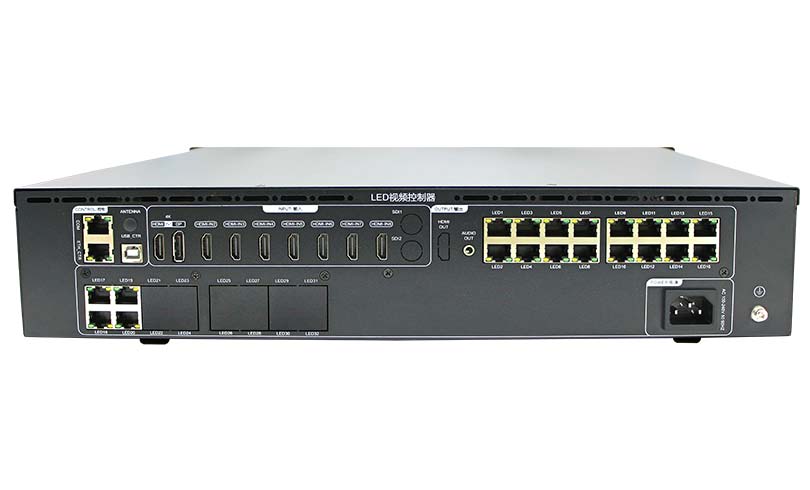

The ZH-Z20L 4K 2-in-1 video processor is a product meticulously crafted by ZH to facilitate the convenient installation of large LED displays. It supports inputs from high-definition sources (such as HDMI and DP) with up to eight windows capable of arbitrary roaming and positioning. Capable of receiving high-definition digital signals up to 4096×2160@60Hz, it provides 20PCS Gigabit Ethernet outputs; a single unit can drive a large display with a maximum width of 16,384 pixels or a maximum height of 4,320 pixels. Featuring a brand-new communication architecture, it delivers high refresh rates, high brightness, and an advanced grayscale scanning engine with nanosecond-level synchronization. It maintains smooth communication even under adverse conditions, allowing users to experience a more colorful and brilliant LED world.


1. Extensive input interfaces: includes 7cs HDMI 1.4 ports and 1pcs HDMI 2.0/DP 1.2 port;

2. Input resolution: supports up to 4096×2160@60Hz and allows for custom resolution settings;

3. Maximum load capacity: 13million pixels, max width of 16,384 pixels, max height of 4,320pixels;

4. Supports seamless switching between video sources and allows for the stitching and scaling of input images based on display resolution.

5. Supports arbitrary roaming across 8 display windows;

6. Supports audio input and output;

7. Supports brightness and color temperature adjustment;

8. Supports high grayscale at low brightness;

9. Supports integration with central control systems via standard Ethernet ports;

10. 20pcs Gigabit Ethernet outputs, supporting arbitrary splicing (vertical/horizontal);

11. Supports hot backup: hot backup between two ports in the same group and multi-card hot backup;

12. Compatible with the full range of AVIC receiving cards, multifunction cards, and fiber optic transceivers;
